6000 Series
TRACTOR SERIES
The New Generation Mahindra 6000 series tractors, are designed to perform multiple tasks, passing through the rigors of works with ease.
6000 Series
TRACTOR SERIES
NO.1
Tractor Company in the world by volume.
IDEAL FOR
AGRICULTURE
MATERIAL HANDLING
AGRICULTURE
Hay
Hay
LIVESTOCK
DAIRY
GROUND MAINTENANCE/ MUNICIPAL
Hay
LIVESTOCK
DAIRY
GROUND MAINTENANCE/ MUNICIPAL
FEATURES
Dedicated to Southern African Farms
These tractors are specially made for dryland farming & livestock, dairy applications.
73 Hp
PEAK POWER
FUEL EFFICIENT
CYLINDER
Highly fuel efficient
Saves 3000 Litres in 1 Year
Loaded with impressive standard features, the complete equipment package offers a Direct Injection, water cooled, Turbo Charged engine Easy shift synchromesh transmission with Power shuttle Big lift capacity.
ENGINE
Dual PTO speeds with independent PTO 12F + 12R Synchromesh with Synchro Shuttle Shift Technology.
BEST IN CLASS
Operating Weight for Traction, Stability and Control.
MODELS IN THE 6000 SERIES
6060 2WD
ENGINE OUTPUT
55.0 HP
PTO HP
48 HP
CYLINDER
4
WEIGHT
3100 kg
LIFT CAPACITY
2600 kg
TRANSMISSION
Partial Synchromesh

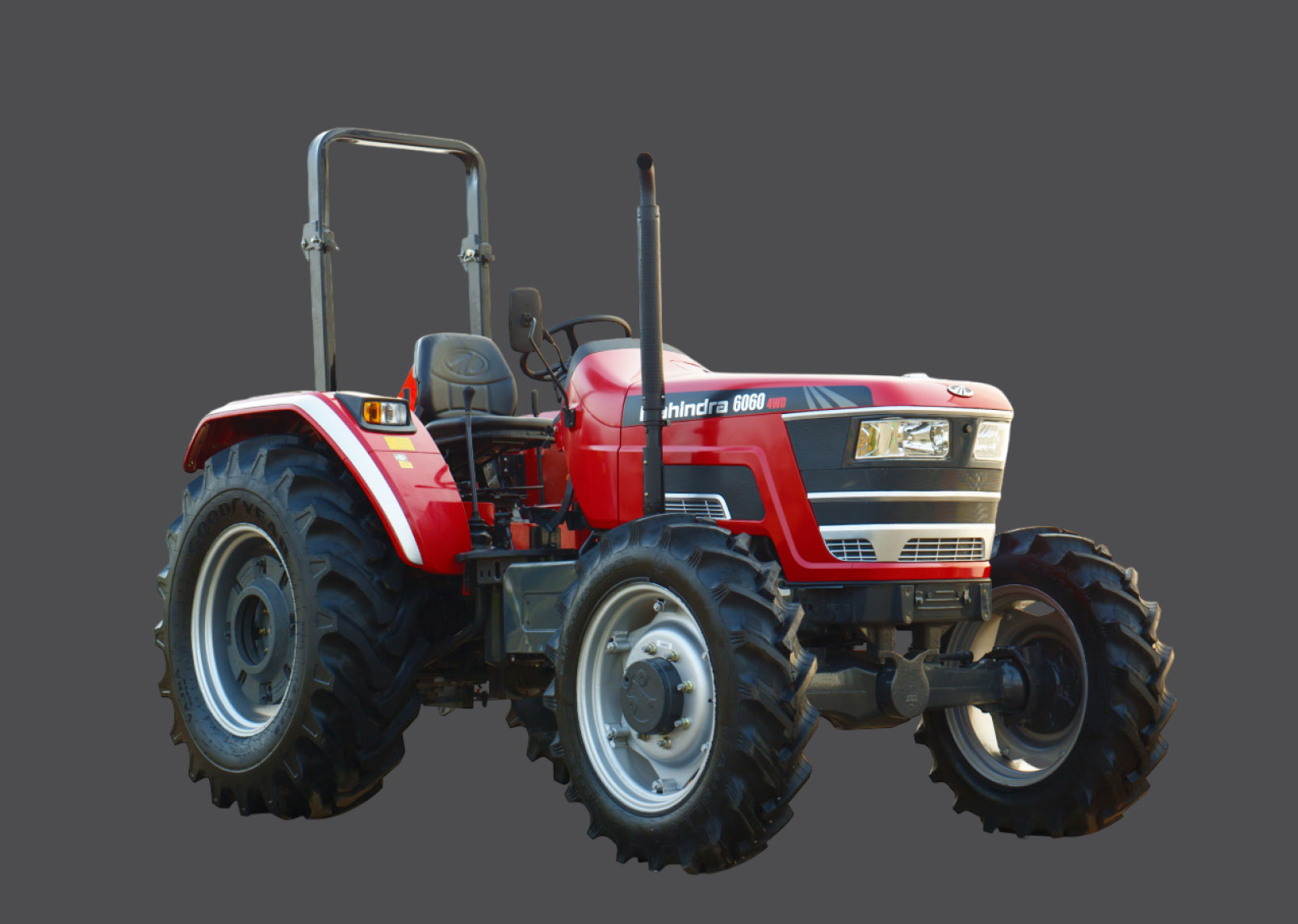

6060 4WD
ENGINE OUTPUT
55.0 HP
PTO HP
48 HP
CYLINDER
4
WEIGHT
3100 kg
LIFT CAPACITY
2600 kg
TRANSMISSION
Partial Synchromesh; With Synchro Shuttle
6065 4WD
ENGINE OUTPUT
62.0 HP
PTO HP
48 HP
CYLINDER
4
WEIGHT
3375 kg
LIFT CAPACITY
2600 kg
TRANSMISSION
Partial Synchromesh; With Synchro Shuttle
6075 4WD
ENGINE OUTPUT
73.0 HP
PTO HP
64 HP
CYLINDER
4
WEIGHT
3375 kg
LIFT CAPACITY
2600 kg
TRANSMISSION
Partial Synchromesh
Know everything about the 6000 series
SPECIFICATION
| ENGINE | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Type | Four Stroke, Direct Injection, Turbocharged, Water Cooled, Diesel Engine | Four Stroke, Direct Injection, Turbocharged, Water Cooled, Diesel Engine | Four Stroke, Direct Injection, Turbocharged, Water Cooled, Diesel Engine | Four Stroke, Direct Injection, Turbocharged, Water Cooled, Diesel Engine |
| Cylinders | 4 | 4 | 4 | 4 |
| Engine HP @ RPM | 55 HP @ 1950 | 55 HP @ 1950 | 62 HP @ 1950 | 73 HP @ 1950 |
| Displacement Cubic (CC) | 3533 | 3533 | 3822 | 3822 |
| ELECTRICAL | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Battery Capacity | 12 V. 100 AH | 12 V. 100 AH | 12 V. 100 AH | 12 V. 100 AH |
| Alternator | 12 V. 90 A | 12 V. 90 A | 12 V. 90 A | 12 V. 90 A |
| CLUTCH | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Type | Dual Clutch | Dual Clutch | Dual Clutch | Dual Clutch |
| TRANSMISSION | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Type | Partial Synchromesh | Partial Synchromesh With Synchro Shuttle | Partial Synchromesh With Synchro Shuttle | Partial Synchromesh With Synchro Shuttle |
| Number Of Gears/Speeds | 15 Forward, 3 Reverse | 15 Forward, 15 Reverse | 15 Forward, 15 Reverse | 15 Forward, 15 Reverse |
| STEERING | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Type | Hydrostatic Power Steering | Hydrostatic Power Steering | Hydrostatic Power Steering | Hydrostatic Power Steering |
| BRAKES | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Type | Mechanical, Oil Immersed, Multi Disc Brakes | Mechanical, Oil Immersed, Multi Disc Brakes | Mechanical, Oil Immersed, Multi Disc Brakes | Mechanical, Oil Immersed, Multi Disc Brakes |
| HYDRAULIC SYSTEM | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Type | Live Hydraulics With Draft & Position Control | Live Hydraulics With Draft & Position Control | Live Hydraulics With Draft & Position Control | Live Hydraulics With Draft & Position Control |
| 3-Point Linkage | Telescopic Lower Links with Cat I or II Rotating Ball Three Point Linkage and Stabilizer | Telescopic Lower Links with Cat I or II Rotating Ball Three Point Linkage and Stabilizer | Telescopic Lower Links with Cat I or II Rotating Ball Three Point Linkage and Stabilizer | Telescopic Lower Links with Cat I or II Rotating Ball Three Point Linkage and Stabilizer |
| Lift Capacity (Kg) | 2600 | 2600 | 2600 | 2600 |
| Rear Auxiliary Remote Valves | Double Spool | Double Spool | Double Spool | Double Spool |
| PTO | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Type | SLIPTO | SLIPTO | SLIPTO | SLIPTO |
| PTO RPM (Engine RPM) | 540 @ 1950 / 540E @ 1409 | 540 @ 1950 / 540E @ 1409 | 540 @ 1950 / 540E @ 1409 | 540 @ 1950 / 540E @ 1409 |
| PTO HP | 48 | 48 | 54.5 | 64 |
| OPERATING WEIGHT | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Total (Kg) | 3100 | 3310 | 3375 | 3375 |
| DIMENSIONS WITH AG TYRES | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| Overall Length (mm) | 4020 | 4020 | 4020 | 4020 |
| Overall Width (mm) | 1960 | 1960 | 1990 | 1990 |
| TYRE SIZES & OPTIONS | 6060 2WD | 6060 4WD | 6065 4WD | 6075 4WD |
|---|---|---|---|---|
| AG (Front/Rear) | 7.5 x 16 / 16.9 x 28 | 9.5 x 24 / 16.9 x 28 | 11.2 x 24 / 16.9 x 30 | 11.2 x 24 / 16.9 x 30 |
GALLERY
UNIQUE SELLING POINT
TOUGH
The 6000 Series tractors are powered by a turbocharged 4 cylinder, direct injection diesel engine, producing
best-in-class torque (306 NM for the 6075 & 227 NM for the 6060). They are designed to ensure a flat torque
curve and maximized torque levels, ensuring high productivity in both PTO and draft applications. Excellent
Torque reserve of up to 20% gives plenty of lugging ability reducing the need for frequent gear shifts during
tough conditions.
The 6000 Series tractors provide Better grip, less slip and can handle tough terrain. The range boasts a
Best-In-Class Tractor Weight, with all models weighing in excess of 3100 KG.
Mahindra Tractors are equipped with Standard ROPS (Roll Over Protective Structures). The objective of
the structure is to protect the operator in the event of a roll over and they are designed to support the entire
weight of the tractor in that event. Each Mahindra ROPS structure is designed and has been tested to meet
stringent standards.
Standard 2 spool auxiliary valve. A heavy and sturdy 3 point linkage is employed to ensure stability and safety. The telescopic lower link provides the fast and simple attachment of rear-mounted implements. The powerful hydraulics boasts a Best-in-Class maximum lift capacity of 2200 kg for 6060 and 2600 kg for 6065 and 6075 models to handle heavy implements.
The epicyclic reduction (4WD) offers high dynamic load carrying capacity and is designed for maximum performance in loader and field operations. The responsive hydrostatic steering has a tight steering angle, for effortless manoeuvring even in confined areas
EFFICIENT
The Low rated engine speed of 1950 RPM ensures lower fuel consumption and less wear and tear of engine components. A big radiator allows for efficient cooling of the engine, even in harsh environments.
The independent PTO lever offer ease in engagement & disengagement during all PTO-driven applications. The 540 & 540E speeds allow for efficient operation with various implements.
The 6000 series offers Low power losses, improved brake efficiency and high reliability because of the
planetary drive system.
Longer service intervals lead to lower operating costs and higher uptime
The 6000 series provides 15F + 15R driving speeds (except the 6060 2WD) and a forward/reverse shuttle. The shuttle (4WD) makes shifting between forward and reverse smooth and quick, thereby ensuring maximum productivity during intense loader and headland operations. The Synchromesh heavy-duty transmission is extremely reliable and easy to use. It eliminates the need to depress the clutch every time the tractor needs to change direction, forward or reverse and the high number of speeds options allows performing a broad range of farming applications most efficiently.
EFFORTLESS
The full platform design with a side shift gear lever, suspended brake and clutch pedals, provides lots of legroom and a spacious work area. The 4-way adjustable seat comes with various comfort features like formed cushions, and adjustable suspension, just what you need for those long hauls.
