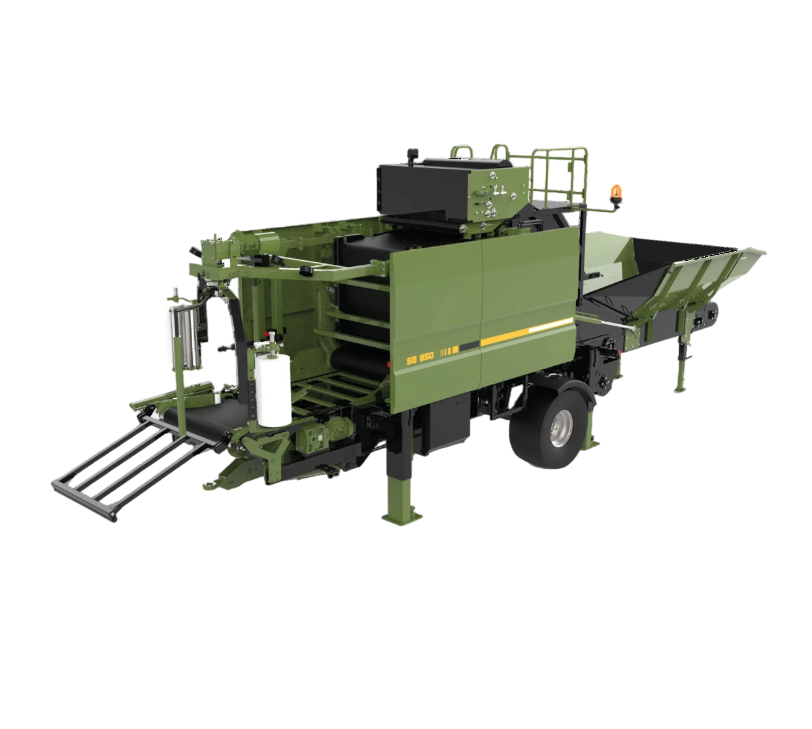

BALER WRAPPER COMBINATION
The baler wrapper combination machine is designed
to streamline baling and wrapping into a single,
efficient operation. By combining both processes in
one pass, it reduces handling time, limits crop
exposure, and helps preserve forage quality. This
integrated system improves productivity while
lowering overall operating time and labour
requirements.
SPECIFICATIONS
| CRITERIA | CRITERIA | BALER WRAPPER COMBINATION MACHINES - SB 850 |
| ENERGY | ENERGY SOURCE | ELECTRICITY (380 V) |
| ENERGY | TOTAL POWER REQUIREMENT (KW) | 24 |
| ENERGY | POWER CONSUMPTION (KWH/TON) | 205 |
| ENERGY | MINIMUM POWER GENERATOR (KW) | 24 |
| ENERGY | BALE CAVITY ENGINE POWER (KW) | 15 |
| CAPACITY | BALE CAPACITY (BALE/HOUR) | 44-55 BALE |
| CAPACITY | BUNKER CAPACITY | 4M³ |
| CONTROL SYSTEM | ELECTRONIC CONTROL SYSTEM | PLC |
| CONTROL SYSTEM | TOUCH SCREEN | STANDARD |
| BALE DIMENSIONS | HEIGHT (MM) | 900 |
| BALE DIMENSIONS | DIAMETER (MM) | 850 |
| BALE DIMENSIONS | WEIGHT (KG) | 400-600 |
| WRAP AND NET FILM DIMENSIONS | WRAP DIMENSIONS (MM) | 500 |
| NET FILM DIMENSIONS | 900 MM AND 1050 MM, STRETCH CAN BE USED WITH THE SAME DIMENSIONS | |
| AUTOMATIC LUBRICATION | STANDARD | |
| PRESSING UNIT | ENDLESS BELT | |
| GENERAL | CARRIAGE LENGTH (CM) | 970 |
| GENERAL | CARRIAGE WIDTH (CM) | 230 |
| GENERAL | CARRIAGE HEIGHT (CM) | 340 |
| GENERAL | WORKING LENGTH (CM) | 935 |
| GENERAL | WORKING WIDTH (CM) | 240 |
| GENERAL | WORKING HEIGHT (CM) | 310 |
| GENERAL | AXLE (QTY) | SINGLE |
| GENERAL | TRACTOR LINK | 1 POINT TOWBAR |
| GENERAL | WEIGHT (KG) | 6860 |
