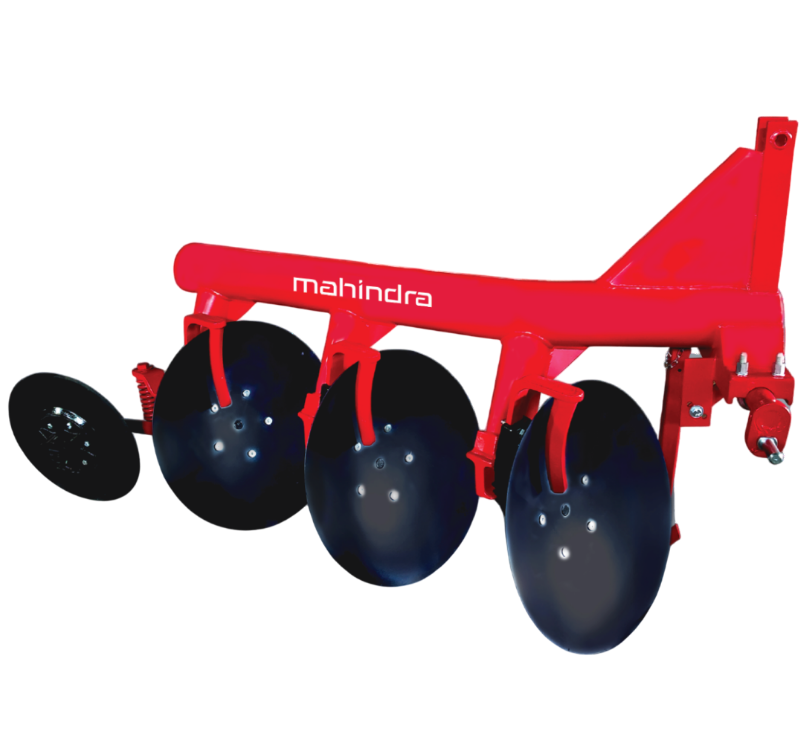

DISC PLOUGH
Mahindra Disc Plough is a reliable attachment
directly connected to tractors, designed for
preparing new fields and tackling challenging
terrains, including rocky areas, dry and trashy land
conditions, and problematic soils prone to scouring.
With a sturdy pipe frame and high trash clearance,
this plough operates seamlessly amidst heavy crop
residue, ensuring effcient and effective field
preparation for all your farming needs.
SPECIFICATIONS
| BELLOTA DISC - BORON STEEL | |||
| PARAMETER | 2 BOTTOM DISC PLOUGH 26" DISC | 3 BOTTOM DISC PLOUGH 26" DISC | 4 BOTTOM DISC PLOUGH 26" DISC |
| MOUNTING CAT | CAT II | ||
| MAIN FRAME | OD 168MM TUBULAR | ||
| DISC SIZE (MATERIAL) | 660 MM X 6 MM THICK (BORON STEEL) | ||
| TYPE OF DISC | PLAIN DISC | ||
| COLTER WHEEL (DIAMETER) (INCH / CM) | 20 / 51 | ||
| COLTER WHEEL (DIAMETER) (INCH / CM) | 30 MM /EN 8 | ||
| WORKING WIDTH RANGE(MM APPROX.) | 600-750 | 751-840 | 841-980 |
| WORKING WIDTH RANGE(MM APPROX.) | 150-250 (Depends on soil moisture and field condition) | ||
| SPACING BETWEEN DISC (MM) | 560 | ||
| WEIGHT (APPROX. IN KG) | 285 | 385 | 515 |
| SUITABLE HP/KW RANGE | 50 TO 60 / 37 TO 45 | 60 TO 70/ 45 TO 52 | 70 TO 90 / 52 TO 67 |
| HIGH CARBON STEEL DISCS - CURRENT SUPPLIER AGRI TILL | HIGH CARBON STEEL DISCS - CURRENT SUPPLIER AGRI TILL | HIGH CARBON STEEL DISCS - CURRENT SUPPLIER AGRI TILL | HIGH CARBON STEEL DISCS - CURRENT SUPPLIER AGRI TILL | HIGH CARBON STEEL DISCS - CURRENT SUPPLIER AGRI TILL |
| PARAMETER | 2 BOTTOM DISC PLOUGH 26" DISC | 3 BOTTOM DISC PLOUGH 26" DISC | 4 BOTTOM DISC PLOUGH 26" DISC | 5 BOTTOM DISC PLOUGH 26" DISC |
| MOUNTING CAT | CAT II | |||
| MAIN FRAME | OD 168MM TUBULAR | |||
| DISC SIZE (MATERIAL) | 660 MM X 6 MM THICK (BORON STEEL) | |||
| TYPE OF DISC | HIGH CARBON STEEL DISC | HIGH CARBON STEEL DISC | HIGH CARBON STEEL DISC | HIGH CARBON STEEL DISC |
| COLTER WHEEL (DIAMETER) (INCH / CM) | 20 / 51 | |||
| COLTER WHEEL (DIAMETER) (INCH / CM) | 30 MM /EN 8 | |||
| WORKING WIDTH RANGE(MM APPROX.) | 600-750 | 751-840 | 841-980 | 981-1120 |
| WORKING WIDTH RANGE(MM APPROX.) | 150-250 (Depends on soil moisture and field condition) | |||
| SPACING BETWEEN DISC (MM) | 560 | |||
| WEIGHT (APPROX. IN KG) | 285 | 385 | 515 | 600 |
| SUITABLE HP/KW RANGE | 50 TO 60 / 37 TO 45 | 60 TO 70/ 45 TO 52 | 70 TO 90 / 52 TO 67 | 90 TO 100/ 67 TO 75 |
