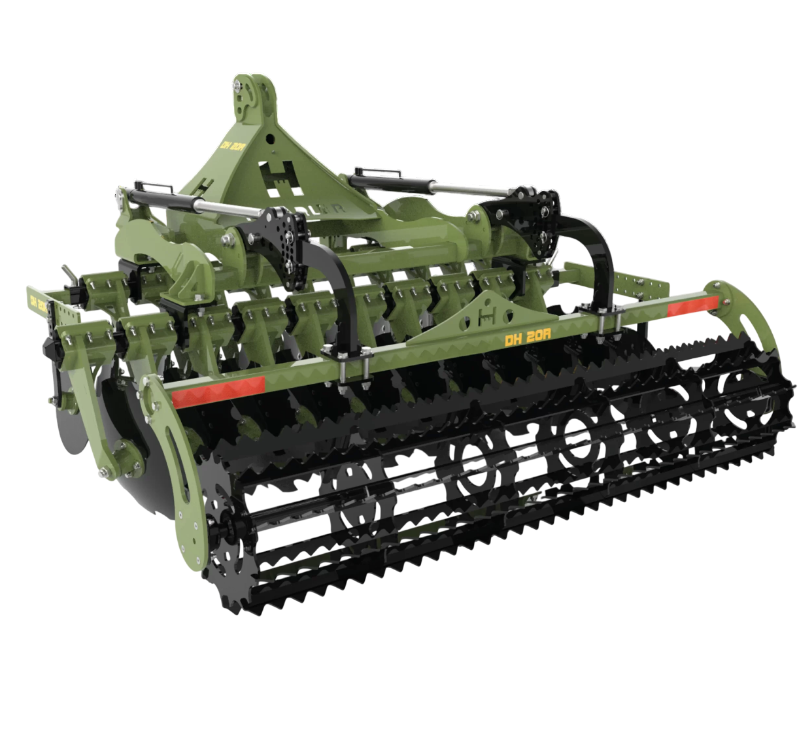

GOBLE TYPE DISC HARROW
Engineered for effcient field operation, this
implement supports thorough soil preparation and
effective weed control while returning crop residue
to the soil to aid nutrient recycling. Its effcient
design ensures best-in-class fuel consumption,
making it economical to operate.
SPECIFICATIONS
| VARIANT | WORKING WIDTH | NUMBER OF DISCS | CHASSIS HEIGHT | DISTANCE BETWEEN DISCS | REQUIRED TRACTOR POWER | DISC DIAMETER | WEIGHT |
| MEASUREMENT UNIT | MM | QTY | CM | MM | HP | CM | KG |
| DH 20G | 2150 | 20 | 65 | 11.5 | 90 | STD. 61 (OR 51/56/66) | 1800 |
| DH 24G | 2590 | 24 | 65 | 11.5 | 110 | STD. 61 (OR 51/56/66) | 1945 |
| DH 28G | 3000 | 24 | 65 | 11.5 | 130 | STD. 61 (OR 51/56/66) | 2200 |
| VARIANT | WORKING POSITION DIMENSION WIDTH X LENGTH X HEIGHT | CARRIAGE POSITION DIMENSION WIDTH X LENGTH X HEIGHT |
| MEASUREMENT UNIT | CM | CM |
| DH 20G | 1240 X 5200 X 2520 | 1460 X 5200 X 2680 |
| DH 24G | 1240 X 5200 X 2680 | 1240 X 5200 X 2950 |
| DH 28G | 1240 X 5200 X 3360 | 1460 X 5200 X 3570 |
