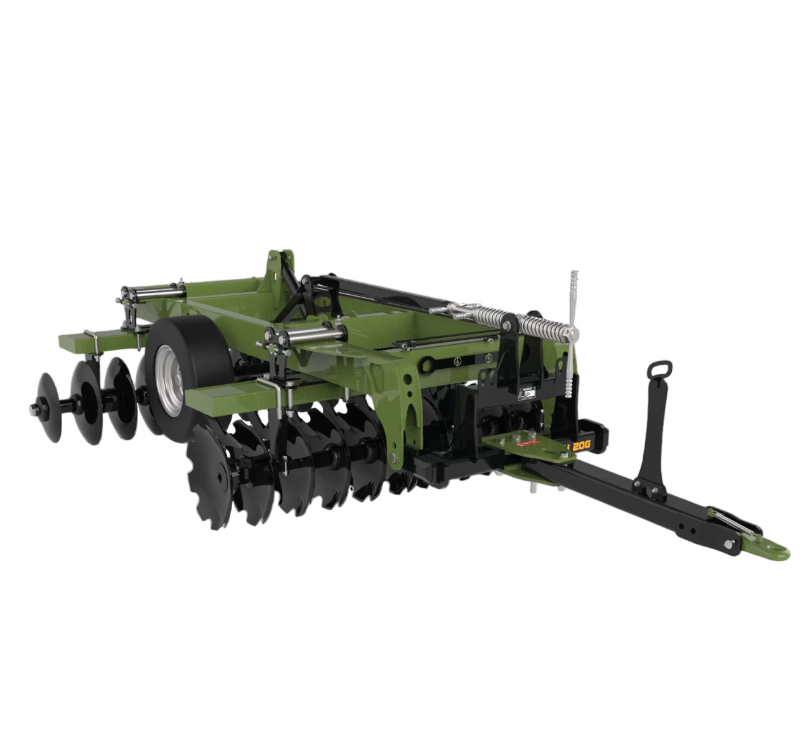

RUBBER TYPE DISC HARROW
This rubber type disc harrow is designed for
effective soil cultivation while absorbing shock and
vibration during operation. The rubber-mounted
system allows the discs to adapt to uneven ground
and obstacles, reducing stress on the frame and
improving durability. It delivers consistent soil
mixing and residue incorporation across varying
field conditions.
SPECIFICATIONS
| VARIANT | WORKING DEPTH | NUMBER OF DISCS | CHASSIS HEIGHT | DISC DIAMETER | REQUIRED TRACTOR POWER | DISTANCE BETWEEN DISCS | WEIGHT |
| MEASUREMENT UNIT | CM | QTY | CM | MM | HP | CM | KG |
| DH 20R | 2.4 | 20 | 75 | 56 | 80 | 11.5 | 1180 |
| DH 24R | 2.8 | 24 | 75 | 56 | 90 | 11.5 | 1280 |
| DH 28R | 2.8 | 24 | 75 | 56 | 90 | 11.5 | 1280 |
| VARIANT | WORKING POSITION DIMENSION WIDTH X LENGTH X HEIGHT | CARRIAGE POSITION DIMENSION WIDTH X LENGTH X HEIGHT |
| MEASUREMENT UNIT | CM | CM |
| DH 20R | 1550 X 2320 X 2750 | 2410 X 1730 X 2750 |
| DH 24R | 1510 X 2320 X 3230 | 2410 X 1730 X 3230 |
| DH 28R | 1510 X 2320 X 3675 | 2410 X 1730 X 3675 |
